Glass Break Sensor

Glass Break Sensor used in electronic burglar alarms that detects if a pane of glass is broken or shattered

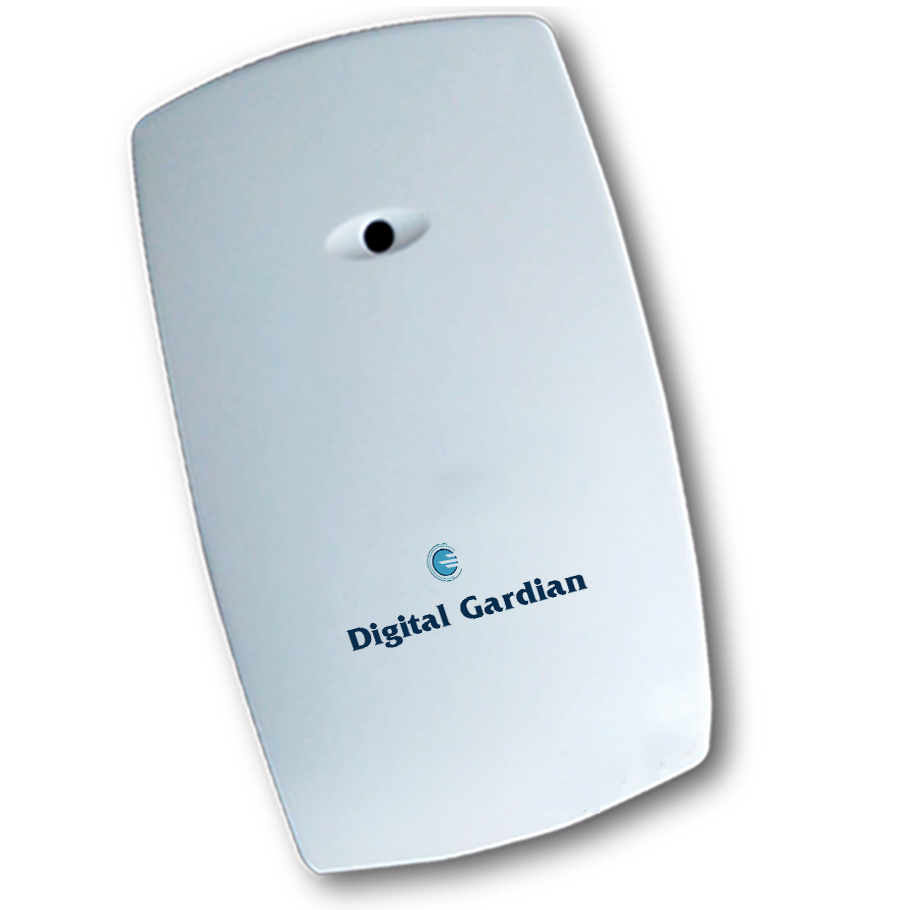

  • Glass Break Sensor - Model-No : ES9186

Specifications

Contact Size

25 ft. (7.6 m) maximum to farthest point of glass being protected. For glass sizes over 12 in. by 12 in. (0.3 m by 0.3 m); types of 1/4 in. (0.64 cm) Plate, Tempered, Laminated, and Wired glass; and 1/8 in. (0.32 cm) Plate glass (DSB).

Mounting

Directly to the ceiling, on an opposite wall, or on an adjacent wall.

Input Power

12 VDC (6 VDC min. to 15 VDC max.), 23 mA nominal @ 12 VDC (29 mA max. in LED latch mode).

Standby Power

Connect to power sources capable of supplying standby power of 23 mA-H for each hour of required standby time. Four hour minimum standby time required for UL Certificated installations.

Alarm Relay

Form “C” reed relay (NC/C). Contacts rated 3.5 Watts, 125 mA @ 28 VDC for DC resistive loads. Protected by a 4.7 ohm resistor in the common “C” leg.

Tamper

Normally Closed (NC/C) rated 125 mA @ 28 VDC maximum.

Operating Temperature

-20° to +120°F (-29° to +49°C). For UL Certificated installations, the temperature range is +32° to +120°F (0° to +49°C).

Dimensions

Round = 3.4 in. diameter by 0.83 in. D (8.6 cm diameter by 2.1 cm D). Square = 3.4 in. H, 3.4 in. W, 0.83 in. D (8.6 cm H, 8.6 cm W, 2.1 cm D).
