Panic Button

Panic Button to assist in alerting somebody in emergency situation where threat to person's or property exists

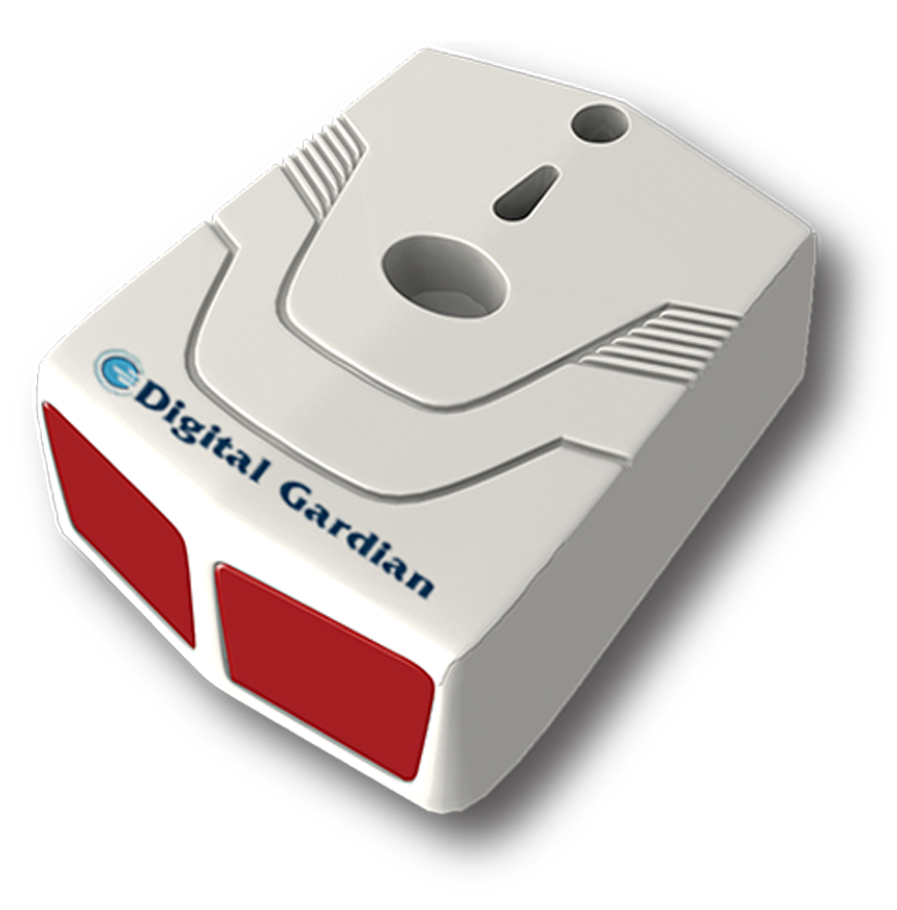

  • Panic Button - Model-No : DG-PA-G3

Features

  • Silent operation
  • Grade 3 Compliant
  • Environmental class II
  • FSL and D/P connection
  • Multiple control panel and resistor options
  • Easy connection of multiple units
  • Cover and rear tamper
  • Anti-lock reset mechanism
  • Independent micro switch tamper
  • Metal reset key
  • Selectable normally closed or open contacts
  • 1 year warranty

Technical Specifications

Contact Voltage Rating 30V dc
Contact Current Rating 1A (max)
Operating Temperature -10°C to +40°C
Operating Life > 1 x 108 Operations

Ordering Information

Available Colour White
Dimensions 62 x 80 x 27 (W x L x H in mm)
