Access Control Lock - Electric Strike Series - Model-No : VB051
Download
Click to download the catalogFeatures
- Working mode : Fail Secure, pulse to open
- Material: Stainless steel plate and zincalloy housing
- Reversible lock tongue
- Adjustablelock tongue
- With shifting fork to make it with normal open function
- With time delay pin
Technical Specifications
| Voltage | 12V AC/DC |
| Current | 850mA |
| Lock size | 250L X 255W X 32H mm |
Access Control Lock - Electric Strike Series - Model-No : VB961
Download
Click to download the catalogFeatures
- Working mode : Fail Secure, pulse to open
- Material: Stainless steel plate and zincalloy housing
- Reversible lock tongue
- Adjustable lock tongue
- With shifting fork to make it with normal open function
- With time delay pin
Technical Specifications
| Voltage | 12V AC/DC |
| Current | 850mA |
| Lock size | 160L X 25W X 32H mm |
Access Control lock - Electric Strike Series - Model-No : J0125QE(Y)
Download
Click to download the catalogFeatures
- Fail-safe Operation (Unlock if power is lost)
- Low Temperature, safe
- Low Power consumption
- Reverse Current Protection PCB
- Reliable Locking Mechanism(Up to 500,000 operations)
- Durable and silence operation
- Full range of optional brackets
Technical Specifications
| Measurement | 200L X 34H X 42W mm |
| Work Voltage | DC 12V ± 10% |
| Work Current | 800mA |
| Static Current | 90mA |
| Time delay | Yes |
| Quantity of wire | 5 |
| Sensor | Door & Lock Status |
Access Control Lock - Electric Strike Series - Model-No : VB0125QB
Download
Click to download the catalogFeatures
- Fail-safe Operation (Unlock if power is lost)
- Low Temperature, safe
- Low Power consumption
- Reverse Current Protection PCB
- Reliable Locking Mechanism(Up to 500,000 operations)
- Durable and silence operation
- Full range of optional brackets
Technical Specifications
| Measurement | 200L X 34H X 42W mm |
| Work Voltage | DC 12V ± 10% |
| Work Current | 800mA |
| Static Current | 90mA |
| Time delay | Yes |
| Quantity of wire | 8 |
| Sensor | Lock Status |

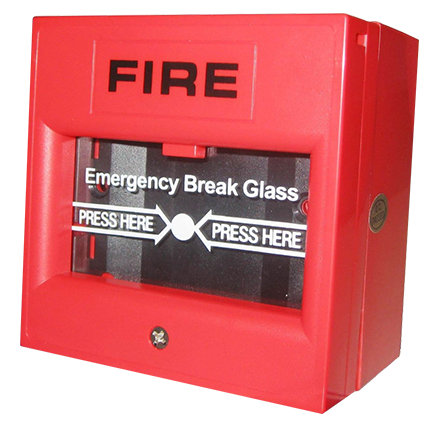

Access Control Lock - Fire Exit Device Series - Model-No : VB419
Download
Click to download the catalogFeatures
- Use fireproof material,accord with the safe request.
- Color: Red / Green / Yellow / Blue /White Optional.
- Suitable for exit door, emergency door.
Technical Specifications
| Current Rating | 3A@36VDC Max |
| Output Contact | NC/NO/COM |
| Optional Accessories | Glass, Cover |
| Dimensions | 86L X 86W X52H mm |

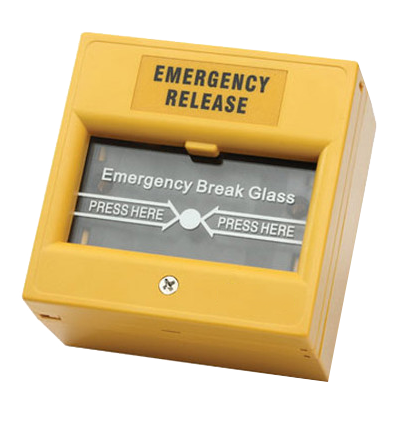

Access Control Lock - Fire Exit Device Series - Model-No :VB418
Download
Click to download the catalogFeatures
- Use fireproof material,accord with the safe request.
- Color: Red / Green / Yellow / Blue /White Optional.
- Suitable for exit door, emergency door.
Technical Specifications
| Current Rating | 3A@36VDC Max |
| Output Contact | NC/NO/COM |
| Optional Accessories | Glass, Cover |
| Dimensions | 86L X 86W X52H mm |

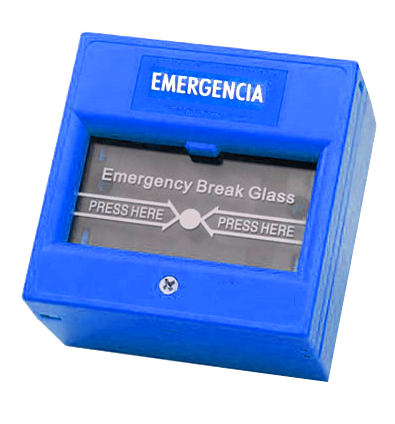

Access Control Lock - Fire Exit Device Series - Model-No : VB417
Download
Click to download the catalogFeatures
- Use fireproof material,accord with the safe request.
- Color: Red / Green / Yellow / Blue /White Optional.
- Suitable for exit door, emergency door.
Technical Specifications
| Current Rating | 3A@36VDC Max |
| Output Contact | NC/NO/COM |
| Optional Accessories | Glass, Cover |
| Dimensions | 86L X 86W X52H mm |
