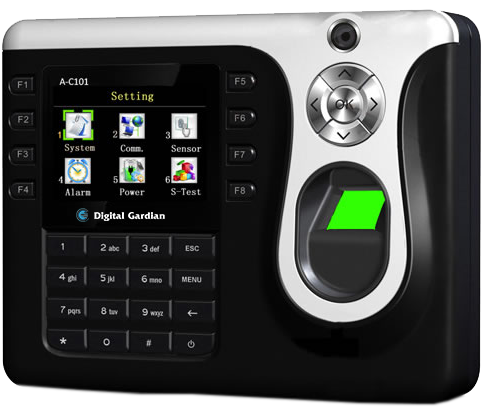

Features
- standalone fingerprint time attendance + RFID function
- 3.2inch Color TFT screen
- Can enroll Max=10 fingerprint to 1 user
- Stores 3,000 templates and 100,000 transactions
- 18 digit user ID
- F1-F8 function key for more convenient attendance
- Support Fingerprint/password/RFID verification
- Built-in Serial and Ethernet ports
- Support USB cable connection for data transfer when network is unavailable
- Otional function: MIFARE + RFID together
- SDK for OEM customers
Technical Specifications
| Model | Q-G120 |
| Fingerprint Capacity | 3,000 |
| Transaction Capacity | 100,000 |
| Language | English, Spanish, German (available to customize others) |
| Push Technology (UDP) | Device Pushes real-time attendance record to the RAMS Software automatically,including the offline records. |
| Display | 3.2 inch TFT Screen |
| Fingerprint Sensor | 500DPI (Optical) |
| Hardware platform | Digital Gardian ZDC2911 |
| Algorithm Version | Digital Gardian RSFv5.1 |
| Communication | TCP/IP, USB, USB Memory Disk |
| Authentication Method | Fingerprint / RFID Card (125Khz) / Password |
| Bell | Built-in Timing Bell (Scheduled-bell) |
| Option functions | MIFARE + RFID together |
| Power Supply | DC 12V / 0.5A |
| Operating environment | Operating Temp: 0°-50°, Humidity:80% |
| Terminal Size | 190 (L)*140 (W)*37 (H)mm |

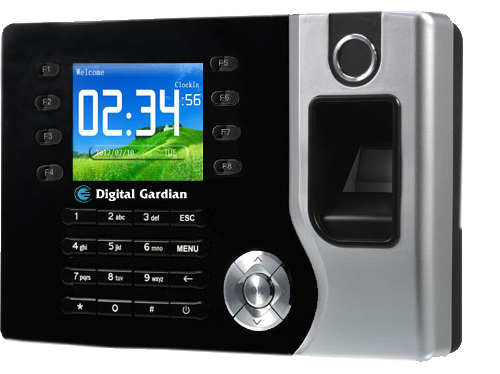

Features
- standalone fingerprint time attendance + RFID function
- 3.2inch Color TFT screen
- Can enroll Max=10 fingerprint to 1 user
- Stores 3,000 templates and 100,000 transactions
- 18 digit user ID
- F1-F8 function key for more convenient attendance
- Support Fingerprint/Password/RFID verification
- Built-in Serial and Ethernet ports
- Support USB cable connection for data transfer when network is unavailable
- Optional function: MIFARE + RFID together
- SDK for OEM customers
Technical Specifications
| Model | Q-G010 |
| Fingerprint Capacity | 3,000 |
| Transaction Capacity | 100,000 |
| Language | English, Spanish, German (available to customize others) |
| Push Technology (UDP) | Device Pushes real-time attendance record to the RAMS Software automatically,including the offline records. |
| Display | 3.2 inch TFT Screen |
| Fingerprint Sensor | 500DPI (Optical) |
| Hardware platform | Digital Gardian ZDC2911 |
| Algorithm Version | Digital Gardian RSFv5.1 |
| Communication | TCP/IP, USB, USB Memory Disk |
| Authentication Method | Fingerprint / RFID Card (125Khz) / Password |
| Bell | Built-in Timing Bell (Scheduled-bell) |
| Option functions | MIFARE + RFID together |
| Power Supply | DC 12V / 0.5A |
| Operating environment | Operating Temp: 0°-50°, Humidity:80% |
| Terminal Size | 190 (L)*140 (W)*37 (H)mm |
Features

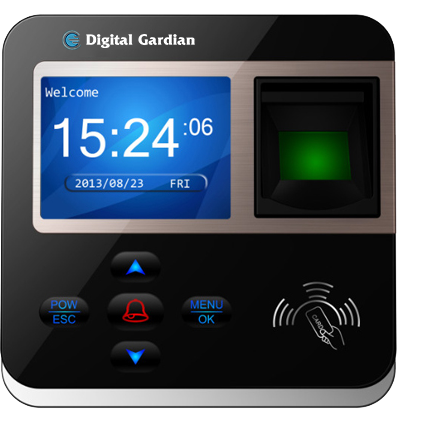

- P-E900 is an innovative biometric fingerprint reader for access control and Time attendance solution.
- Small amd simple design to ensure your safe access control solution.
- Support network connection via LAN and WAN network.(for example,you can connect your software from USA to the device in Germany)
- P-E900 supports connecting to the external timing bell.
- Support push technology(UDP) for attendance records.
Technical Specifications
| Model | P-E900 (finferprint TA & AC reader) |
| LCD Screen | 2.4 inch TFT (320*240) Color Screen |
| Fingerprint Sensor | Optical Sensor (500DPI) |
| Software OS | XP / Win2003 / Vista / Win7 / Win8 (Support both32bit/64bit) |
| Fingerprint Capacity | 800 |
| Records Capacity | 50,000 |
| CPU | ARM926EJ CPU Running frequency.0.200MHZ |
| Authentication Method | Fingerprint / RFID Card (125Khz, EM4100) |
| Bell | Built-inTiming Bell (can connect to external timing bell) |
| Communication | TCP / IP, RS485, USB Memory Disk. |
| Language | English / Chinese / Korean / Spanish / Arabic / German (could customize others) |
| Operating Mode | Off-line / Online |
| Access Control Interface | Wiegand 26 / 34,Door Lock,Siren,Exit Button (1group), Door Bell,Door Sensor. |
| Professional Access Function | Open door by multilevel verification,anti-pass back |
| Power | DC 12V / 0.5A |
| Operating Environment | Operating Temp: 0°-50°, Humidity:20% - 80% |
| Size of the Terminal | 103 (L)*103 (W)*31 (H)mm |

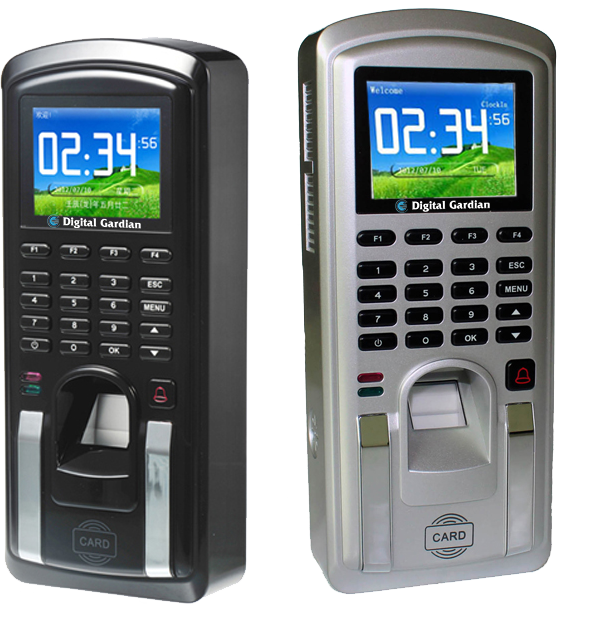

Features
- Professional fingerprint access control with time attendance function.
- 2.4inch TFT screen.
- Can enroll Max=10 fingerprint to 1 user.
- Stores 800 templates and 50,000 transactions.
- Support Fingerprint/RFID Verfication.
- Built-in Serial and Ethernet ports.
- Support Wiegand 26/34.
- Optional function: MFARE CARD function.
- SDK for OEM customers.
Technical Specifications
| Model | P-E060-B, P-E060-S |
| Case color for choose | Black, Silver |
| Fingerprint Capacity | 800 |
| Transaction Capacity | 50,000 |
| Language | English / Spanish / Portuguese / German (could customize others) |
| Push Technology (UDP) | Device Pushes real-time attendance recordto the RAMS software automatically,including the office record |
| Display | 2.4inch TFT Screen |
| Fingerprint Sensor | 500DPI (Optical) |
| Hardware Platform | Digital Gardian ZDC2911 |
| Algorithm Version | Digital Gardian RSFv5.1 |
| Communication | TCP / IP, RS485, USB Memory Disk |
| Authentication Mode | Fingerprint / RFID Card (125Khz) |
| Bell | Built-in Timing Bell (Scheduled-bell,can cannect to external timing bell) |
| Access Control Interface | Wiegand 26 / 34,Door Lock, siren, Release Button, Door Bell, Door Sensor |
| Professional access function | Open door by multilevel verification,anti-pass back |
| Power Supply | DC 12V/1A |
| Operating Environment | Operating Temp: 0 C-50°C°, Humidity:80% |
| Size of the Terminal | 103 (L)*103 (W)*31 (H)mm |
Biometric Solutions - Model-No : Q-E020-G
Download
Click to download the catalogFeatures

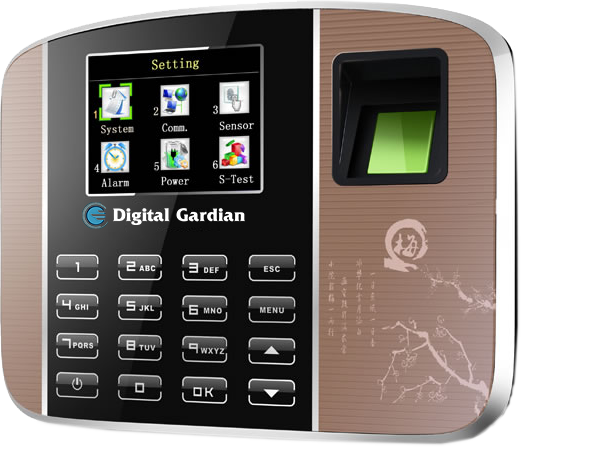

- Q-E020-G is an innovative biometric fingerprint reader with Ultra-thin Design and special IMD material,makes the device more fashion.
- Q-E020-G designs cover with the plum blossom Orchid, Bamboo and Daisy design, makes the devices more elegant.
- Support push technology (UDP) for attendance records
- Distributors could design, you could also send us your idea, we accept the OEM orders.
Technical Specifications
| Model | Q-E020-G fingerprint time attendance - Ultra-thin Design |
| LCD Screen | 2.8 inch TFT Color Screen |
| Fingerprint Sensor | Optical Sensor (500DPI) |
| CPU | Up to 200MHz CPU CLK and 100MHz system operating frequency. |
| Sotware OS | XP / Win2003 / Vista / Win7 / Win8 (support both 32bit / 64bit) |
| Fingerprint Capacity | 1,000 |
| Records Capacity | 100,000 |
| Communication | TCP/IP, USB Memory Disk, USB cable connection |
| Authentication Method | Fingerprint / RFID Card (125Khz) / Password |
| Proximity Card | RFID card (125Khz, EM4100) |
| Identification Time | ≤1s |
| FRR | ≤1% |
| FAR | ≤0.0001% |
| Operating Mode | Off-line / Online |
| Authentication Mode | 1:1, 1:N |
| Language | Chinese / English / Spanish / Arabic / German (could customize others) |
| Voice Prompt | Chinese / English / Spanish (could customize others) |
| Bell | Built -in Timing Bell |
| Power | DC 12V / 0.5A |
| Size of the Terminal | 170 (L)*134.5 (W)*29 (H)mm |

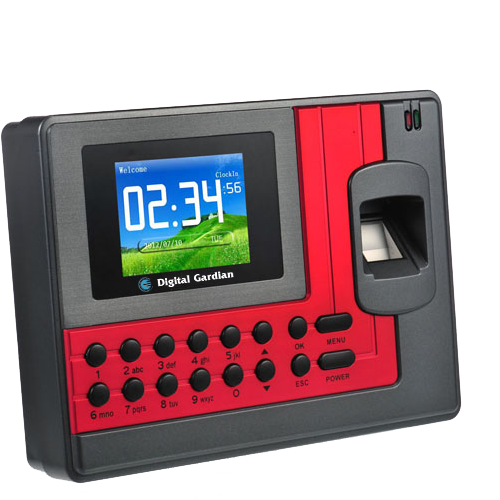

Biometric Solutions - Model-No : Q-G140
Download
Click to download the catalogFeatures
- Small design with acrylic case for Q-G140 along with Black and Silver color for the case, make the devicemore popular in European market.
- 8 function keys(F1-F8) to make the attendance mark more easy
- Q-G140 support Push technology function (UDP): divice push attendance records to the connected software via Ethernet in real-time.
Technical Specifications
| Model | Q-G140 (fingerprint time attendance) |
| LCD Screen | 2.4 inch TFT Color Screen |
| Fingerprint Sensor | Optical Sensor (500DPI) |
| CPU | Upto 200MHz CPU CLK and 100MHz system operating frequency |
| Software OS | 850mAXP / Win2003 / Vista / Win7 / Win8 (support both 32bi / 64bit) |
| Fingerprint Capacity | 2,000 |
| Records Capacity | 100,00 |
| Communication | TCP/IP, RS485, USB Memory Disk, USB cable connection |
| Authentication Method | Fingerprint / RFID Card (125Khz, EM4100) Password |
| Verification Speed | ≤1s |
| Operating Mode | Off-line / Online |
| Authentication Mode | 1:1, 1:N |
| Language | Chinese / English / Spanish / Arabic / German (could customize others) |
| Voice Prompt | Chinese / English / Spanish (could customize others) |
| Bell | Built-inTiming Bell |
| Power | DC 12V/0.5A |
| Size of the Terminal | 164 (L)*110 (W)*42 (H)mm |

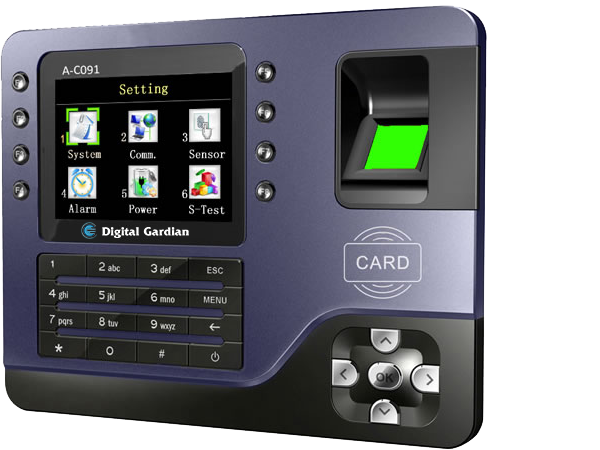

Biometric Solutions - Model-No: G001M
Download
Click to download the catalogFeatures
- G001M is an innovative biometric fingerprint reader with battery backup function,battery works more than 4 hours.
- G001M could customize simple access control function, can support external timing bell with access function.
- Support network connection via LAN and WAN network. (for example, you can connect your software from USA to the device in Germany)
- Support push Technology(UDP) for attendance records.
Technical Specifications
| Model | G001M (fingerprint time attendance) |
| LCD Screen | 2.8 inch TFT Color Screen |
| Fingerprint Sensor | Optical Sensor (500DPI) |
| CPU | Upto 200MHz CPU CLK and 100MHz system operating frequency makes faster recognition speed |
| Software OS | XP / Win2003 / Vista / Win7 / Win8 (support both 32bit / 64bit) |
| Fingerprint Capacity | 2,000 |
| Records Capacity | 100,000 |
| Authentication Method | Fingerprint RFID Card (125Khz) / Password |
| Communication | TCP/IP, USB Memory Disk, USB cable connection |
| proximity card | RFID card(125KHZ) / password |
| Identification Time | ≤1s |
| Operating Mode | Off- line / Online |
| Language | Chinese / English / Spanish / Arabic / German (could customize others) |
| Voice Prompt | Chinese / English / Spanish (could customize others) |
| Bell | Built-inTiming Bell |
| Battery Backup | Support (more than 4 hours) |
| Power | DC 12V/0.5A |
| Optional | Could Customize battery backup (battery works for more then 4 hours) |
| Size of the Terminal | 190 (L)*140 (W)*41.5 (H)mm |

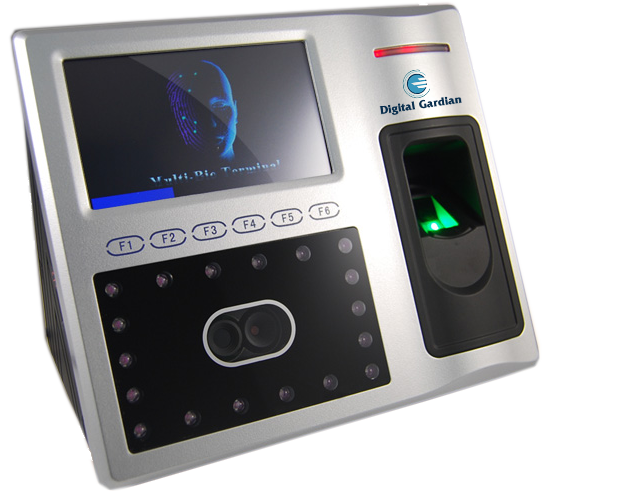

Biometric Solutions - Model-No : EQ0-J
Download
Click to download the catalogFeatures
- Friendly user-interface.
- Self-defined shortcut key.
- Multi-languages.
- Data auto be encrypted.
- self-service query.
- Daylight saving time.
- Workcode and photo-ID.
- Communication:TCP/IP, RS485/232, USB host.
Technical Specifications
| LCD Display | 4.3"TFT Touch Screen |
| Speaker | Voice prompt (language can be selected) |
| Capacity | Face: 1500 (1:N) Fingerprint:2,000 Logs:100,000 |
| Verification | Verification speed (1:1)≤0.5s, Identification speed (1:1)≤1s |
| Identification | FRR ≤ 0.01% FAR ≤ 0.00001% |
| Attendance status | Check in / out, Break in / out |
| Communication | TCP / IP,RS232 / 485, USB Host |
| Access control | Built-in reley, Door Sensor, Wiegand out |
| Cameras | High Definition Infrared Cameras |
| Language | Multi language, English, French, Spenish, Arabic, Turkish, Portuguese, Hebrew, Vietnamese, dutch, German, Traditional, Indonesian, Italian, Persian, Polish, Russion, Thai, Romanian etc., |
| Environment | Operating temperature:0 C-45 C, Operation humidity:20%-80% |
| Memory | 256M flash,64 SDRAM |
| Power Supply | 110 / 220 VAC-12VDC 3A |
| Package information | Machine size:19.4 (L)*16.5 (W)*86 (H)cm, Unit packing:31*26*12cm, Carton packing:50*34*38, Real weight:1.6Kg, Volume weight:2.0Kg |
| Function support | Scheduled bell:DLST; Self-inquiry; Workcode:SMS; T9 input; Webserver; Multi-alarm, Photo ID; User role; Data encryption; External bell |
| Customize function | Main Sreen style; fingerprint image; External bell |
| Optional function | Wifi; 3G; Printer support; RFID; Mifare |

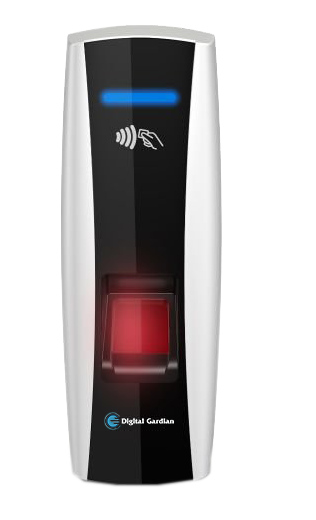

Biometric Solutions - Model-No: 60CUBCV0
Download
Click to download the catalogFeatures
- Access Conreol: Hybrid identification software & hardware support single door to multi door ip camera & DVR integration.
- Lift & Floor Access Control: 128 floor support unlimited cascading over software 7 hail-calling support access permission grants to different users.
- Zone Management: access statement to zones people counting time to zone summery exception report.
- Time Attendance: Over-night shift schedule rotation management over-time management T/A reports.
Technical Specifications
| Verification Mode | Fingerprint / Card (Not support Keypad) |
| Template Capacity | 9,590 |
| Sensor Type | Optical |
| Resolution | 500dpi |
| Sensing Area | 16X19mm |
| Template Size | 256~384Bytes |
| Image Size | 272X320(pixel) |
| 1:1 Verification Time | <600msec |
| 1:1,000 Identification time | <760msec |
| Card Capacity | 20,000 |
| Communication | TCP / IP,Wiegand/RS485 |
| DIO Support | DI: 3 / DO: 1 |
| Inbuilt Relays (Max.power loading) | Door Lock(40VAC / 40VDC,2A) |
| System Log | 1,536 entries |
| Entry Log | 51,968 entries |
| Time Zone / Time Set / Group | 255 / 120 / 255 Sets |
| Holiday | yes |
| Remote Control/Event Handle | Yes / Yes |
| Fast Registry | Yes |
| Function Key | 400 (Auto / Manual) |
| Anti-pass Back | Yes |
| Power Consumption | 500mA±5% |
| Power Requirement | 9~24VDC/1A |
| Operating Temperature | 0°C~65°C |
| Operating Humidity | 5%~80%RH |
| Dimention / Weight | 160 X 56.9 X 40.1mm / 150g |
