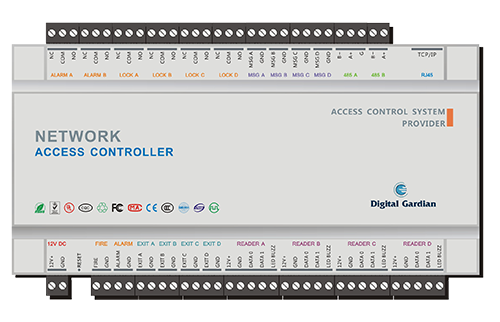

• Door Access Control - Model-No : V17-HVM, V17I-HVM, V19-HVM

Features

  • Directly intergrate TCP/IP Communication with excellent transmission
  • Performance.
  • Big flash capacity can keep data for 10 years if no power.
  • All of input interfaces have optocoupler protection and system is more stable.
  • WEB server is built in access control. We can manage and real time monitor and no need install software.
  • Access control’s time zone can reach as many as 8 groups and each group can have different verifications.
  • Support multi verification : Card, card+PSW, PSW, PSW, double cards, first card opening, door timer, time alarm.
  • Support remotely open or close door, alarm, fire alarm.
  • Support software or manage door through WEB and realize global anti passback
  • Support alarm output of multi events like invalid card and time, alarm, door open overtime.
  • All of wiegand interfaces are compatible with wiegand protocol like 26,34,37.
  • Data automatically sends without limitation of access controller qty.
  • Separately set each cards validity.
  • All of our access controllers support 485, TCP/IP controller’s mixing installation.
  • Support time attendance and on line guard tour function.
  • Support real time management monitor by multi users and multi devices. Working with IP camera to realize network real time monitor and videocapture.

Technical Specifications

TCP/IP Parameter
User 30000
Event60000
Alarm Event60000
CommunicationTCP/IP
Communication distanceSoftware Management Without Limitation
Card ReaderWiegand Protocol
Door Open MethodCard, Card+PSW, PSW, Double Card, Software, Free Pass, Push Button, Door Timer.
TCP/IP Standard Interface
Card Reader8
Alarm Output1
Alarm input1
Fire Alarm Output1
Fire Alarm Input1
Release Button4
Door Sensor Input4
Lock Output4
TCP/IP Communication1
Rs485 Interface1
TCP/IP Basic Parameter
Panel Size232 x 134 x 22mm
Panel ColorDeep Blue
Panel Weight300g
Metal Box Size300 x 300 x 75mm
Box ColorBlack
Box Weight1.4KG(Bigger : 2.4KG)
Working Tempreature60 degree
Humididty10%-95%R.H
Working Voltage12V
Working Current<240ma
Rated power≤5W
Data Protection if No Power Supply10Years
Application AreaGovernment, research institution industrial and mining enterprises intelligent building, office building intelligent community, villas Apartment, communication room Bank financial institution,treasury military installation, prison subway, airport, busstation turnstile control, car parking system university, hospital, hotel.
Function
V19-HVMTwo door two way
V17-HVMFour door one way
V17I-HVMFour door two way
