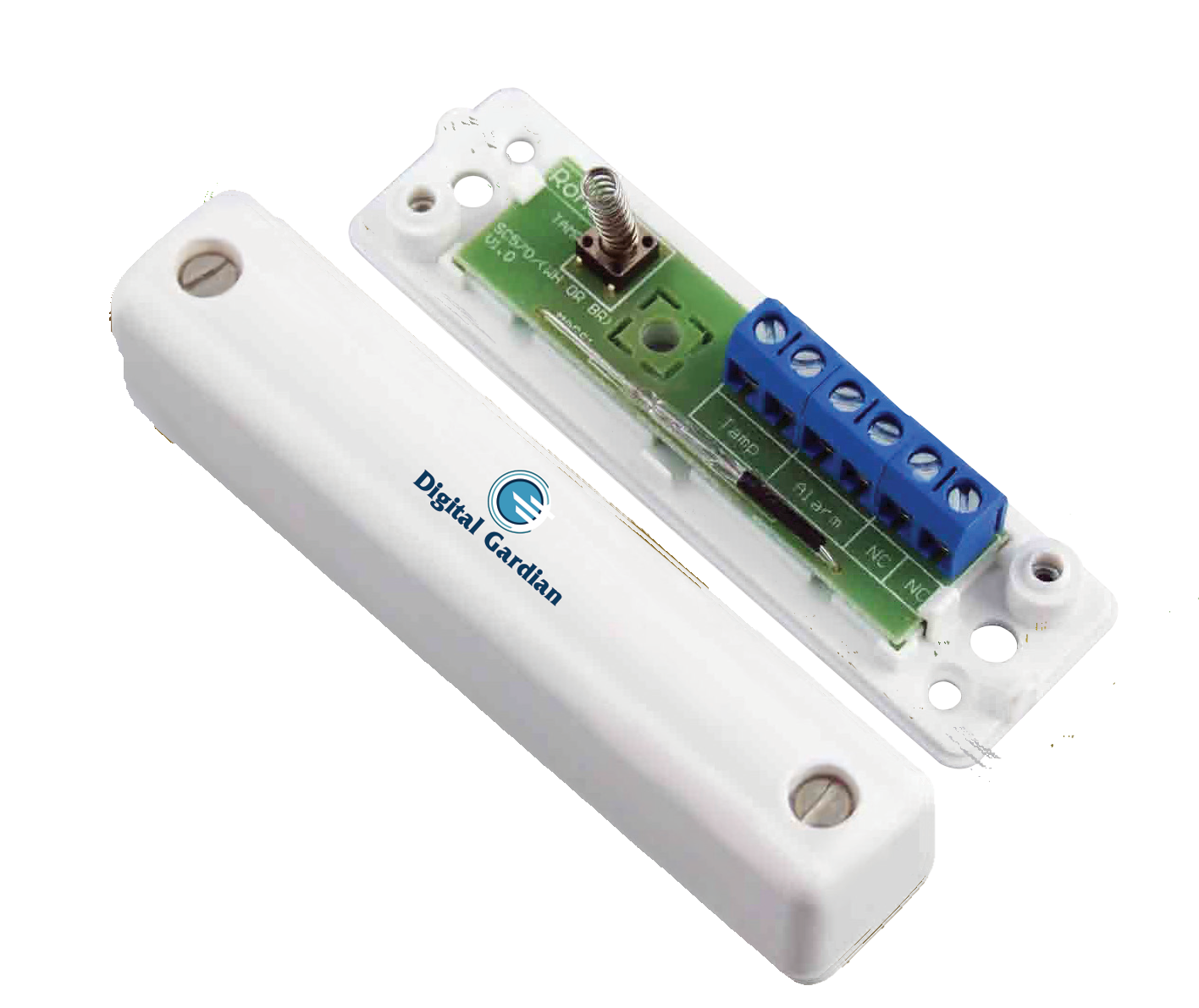

Door Contact - Model-No : DG-DC-G3
Features
- 6 Terminals
- Cover and wall tamper
- Available in White Colour
- Magnetic Detection
- EN50131-2-6 Grade 3 Compliant
- Environmental Class II
Technical Specifications
| Connections | 6 Terminals |
| Reed Switches | 2 |
| Pull-in Gap | 12mm (X) 10mm (Y) |
| Material | High Impact Polystyrene |
| Contact Size mm | 85 x 25 x 21 |
| Magnet Size mm | 85 x 18 x 21 |
| Contact Form | SPST form A |
| Voltage Range | 12v DC |
| Switching Current | 500mA @ 12Vdc |
| Contact Material | Rhodium & Ruthenium |
| Temperature Range | -15° C to +40° C |
| Tamper | Cover & optional RFMS |
| Colour | White |
| Magnetic Interference Detection | Yes |
| Standards | EN50131-2-6 Grade 3 Compliant |
| Environmental Class | II |
-

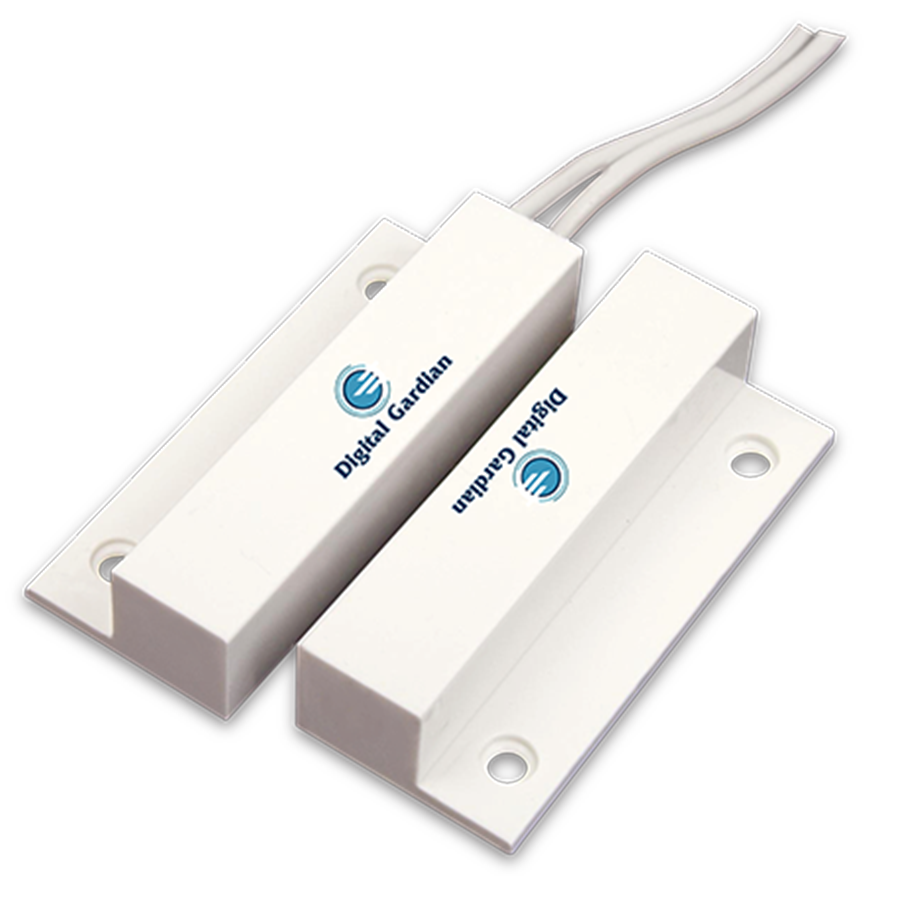

Door Contact - Model-No : EP-019V
Technical Specifications
| Model Number | EP-019V |
| Gap Inch | 83"(21mm) |
| Loop Open/Closed | CLOSED |
| Reed Form | Normally Open |
| Max. Contact Rating | 10W |
| Max. Initial Contact Resistance | 100mΩ |
| Max. Switching Voltage | AC 110/DC 100 V |
| Max. Switching Current | 0.5A |
| Contact Size | 1.32"L×.53"W×.3"H (33.6mm×13.5mm×7.5mm) |
| Standard Magnet Size | 1.32"L×.53"W×.3"H (33.6mm×13.5mm×7.5mm) |
| Wire | 12"(305mm) 4 cores jacket wire |
| Leads | Longer leads available |
| Operation Temperature | -40°C to +60°C |
| Type | Grade 3 Compliant |
Dimensions
