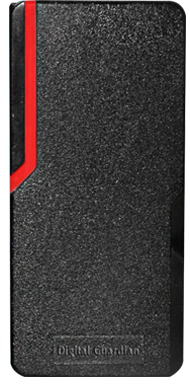

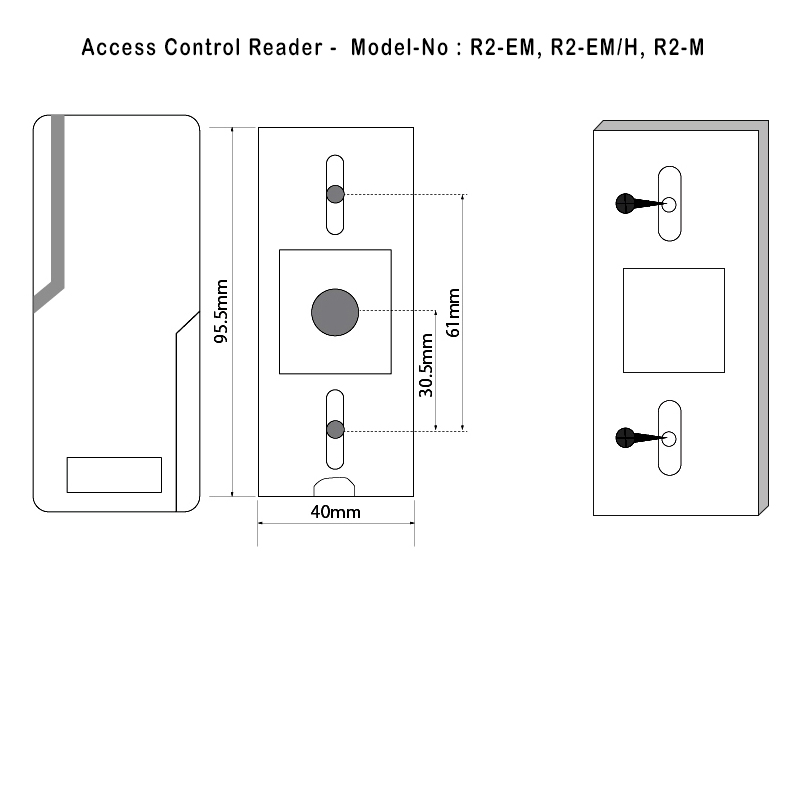

Access Control Reader - Model-No : R2-EM, R2-EM/H, R2-M
Features
- Output interface: Wiegand26 bits
- 3 Color LED display for the working condition: yellow, green, red Weatherproof, shockproof, anti-vandal
- Reading distance: 3-10CM
- Working frequency: 125KHz(EM,HID card),13.65MHz(Mifare card)
- Transmit distance: 100M
- Operating voltage: 12V DC
- With HID Card Support (R2-EM/H)
- with 13.65Mhz Mifare Card Support (R2-M)
Technical Specifications
| Supply Voltage | 12VDC |
| Standby Current | ≤30mA Communication |
| Communication Interface | Wiegand 26 - 37 |
| Support Cards | EM,HID,IC/CPU |
| Response Time | 0.1s |
| Card Reading Range | 3-6cm/2-6cm |
| Operating Temperature | -40ºC ~ 60ºC |
| Level Of Protection | IP65 |
| Antistatic | 15KV |
| Transmit Distance | 100M |
| Cable Length | 90 - 100cm |
| Power | ≤ 30mA |
| Dimension | L103mm X W48mm X H23mm |
| R2-EM | |
| Card | 125KHz EM |
| Card Reading Range | 3-6cm |
| Communication Interface | Wiegand 26 - 37 can be Customized(26 bit is factory default) |
| R2-EM/H | |
| Card | 125KHz HID,EM |
| Communication Interface | Wiegand 26 - 37 (Wiegand 26 card reader. it will output,wiegand 26-37 bit according to HID card's format automatically) |
| R2-M | |
| Card | 13.56MHz IC/CPU |
| Card Reading Range | 2-6cm |
| Communication Interface | Wiegand 26 - 37 can be Customized(26 bit is factory default) |
-

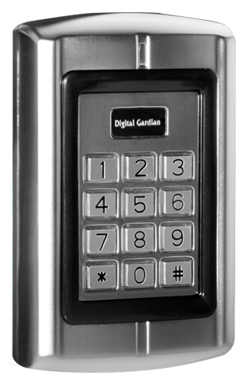

Access Control Reader - Model-No : R3-KEM, R3-KHEM, R3-KM
Download
Click to download the catalogFeatures
- A new generation proximity reader with a keypad design
- Waterproof, conforms to IP65
- Strong zinc alloy electroplated anti-vandal case
- Wiegand 26～37 can be customized by the buyers
- HID card can output Wiegand 26~37 automatically
- low power consumption ( ≤30mA)
- Total 3 formats of key output: 4bit, 8bit, virtual card number
- With HID Card Support (R3-KHEM)
- with 13.65Mhz Mifare Card Support (R3-KM)
Technical Specifications
| Supply Voltage | 12VDC |
| Standby Current | ≤30mA Communication |
| Communication Interface | Wiegand 26 - 37 |
| Support Cards | EM,HID,IC/CPU |
| Response Time | 0.1s |
| Card Reading Range | 3-6cm/2-6cm |
| Operating Temperature | -40ºC ~ 60ºC |
| Level Of Protection | IP65 |
| Antistatic | 15KV |
| Transmit Distance | 100M |
| Cable Length | 90 - 100cm |
| Power | ≤ 30mA |
| Dimension | L103mm X W48mm X H23mm |
| R3-KEM | |
| Card | 125KHz EM |
| Card Reading Range | 3-6cm |
| Communication Interface | Wiegand 26 - 37 can be Customized(26 bit is factory default) |
| R3-KHEM | |
| Card | 125KHz HID,EM |
| Communication Interface | Wiegand 26 - 37 (Wiegand 26 card reader. it will output,wiegand 26-37 bit according to HID card's format automatically) |
| R3-KM | |
| Card | 13.56MHz IC/CPU |
| Card Reading Range | 2-6cm |
| Communication Interface | Wiegand 26 - 37 can be Customized(26 bit is factory default) |
-

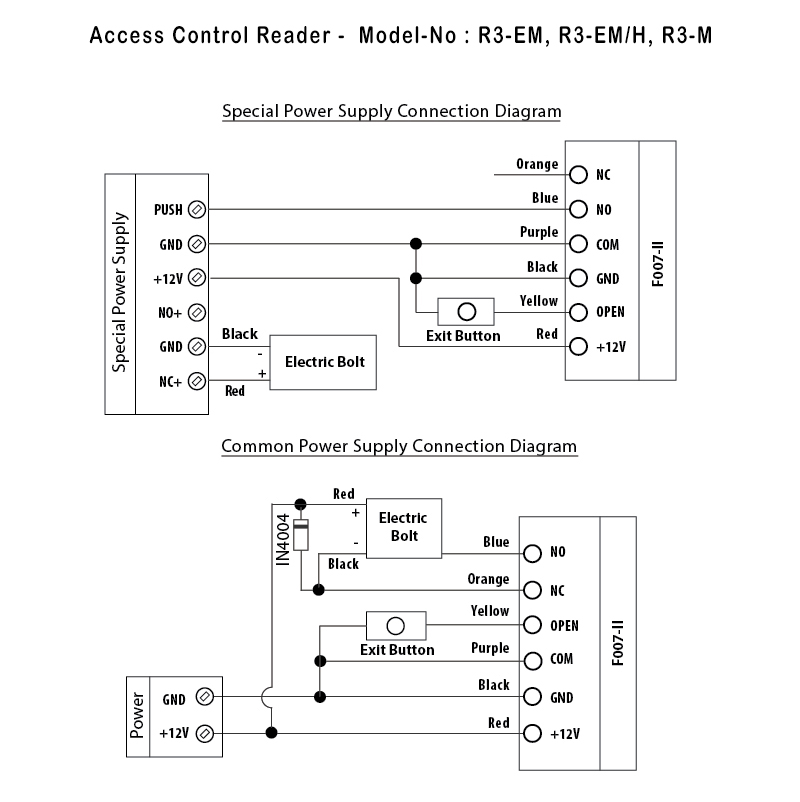

Access Control Reader - Model-No : R3-EM, R3-EM/H, R3-M
Features
- Waterproof, conforms to IP65
- Strong zinc alloy electroplated anti-vandal case
- Wiegand 26～37 can be customized by the buyers
- HID card can output Wiegand 26~37 automatically
- low power consumption ( ≤30mA)
- With HID Card Support
- with 13.65Mhz Mifare Card Support
Technical Specifications
| Operating Voltage | 12VDC±10% |
| Fingerprint Capacity | 1000 |
| Door Open Time | 0 - 99s |
| Fingerprint Input Time | <1s |
| Identification Time | <1s |
| FAR | <0.0001% |
| FRR | <0.1% |
| Operating Temperature | -20ºC -60ºC |
| Operating Humidity | 20-95% |
| Sleeping Current | ≤ 20mA |
| Stay Current | ≤ 80mA |
| Door Relay Contact Load | 2A |
| Anti-static | ≤ 30mA |
| Dimension | 115(L) X 70(W) X 33(H)mm |
